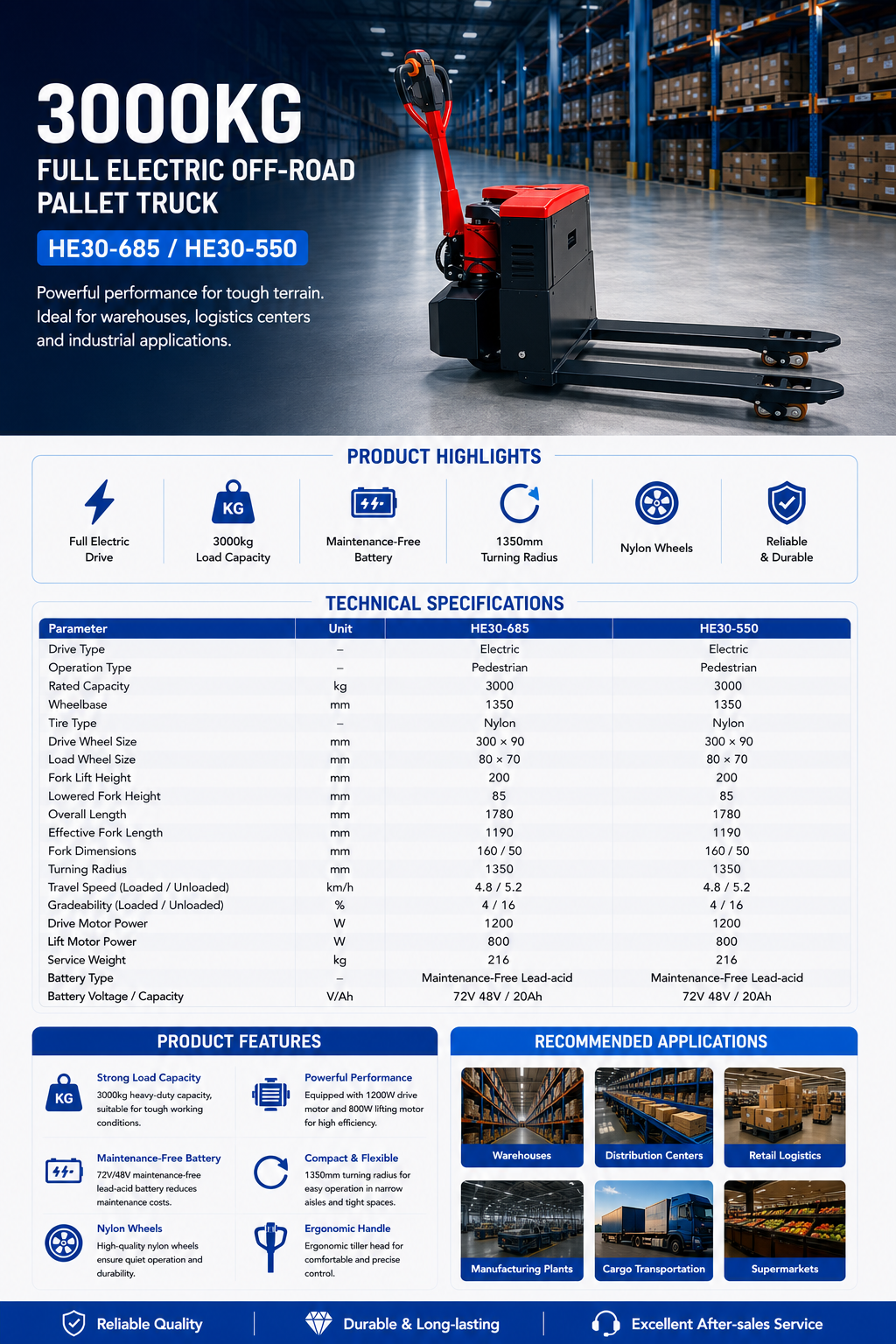

当前产品参数
| Drive Type | Electric |
|---|---|
| Operation Type | Pedestrian |
| Rated Capacity | 3000 kg |
| Wheelbase | 1350 mm |
| Tire Type | Nylon |
| Drive Wheel Size | 300 x 90 mm |
| Load Wheel Size | 80 x 70 mm |
| Fork Lift Height | 200 mm |
| Lowered Fork Height | 85 mm |
| Overall Length | 1780 mm |
| Effective Fork Length | 1190 mm |
| Fork Dimensions | 160 / 50 mm |
| Turning Radius | 1350 mm |
| Travel Speed Loaded / Unloaded | 4.8 / 5.2 km/h |
| Gradeability Loaded / Unloaded | 4 / 16 % |
| Drive Motor Power | 1200 W |
| Lift Motor Power | 800 W |
| Service Weight | 216 kg |
| Battery Type | Maintenance-free lead-acid |
| Battery Voltage / Capacity | 72V 48V / 20Ah |
