HE30-550 / HE30-685

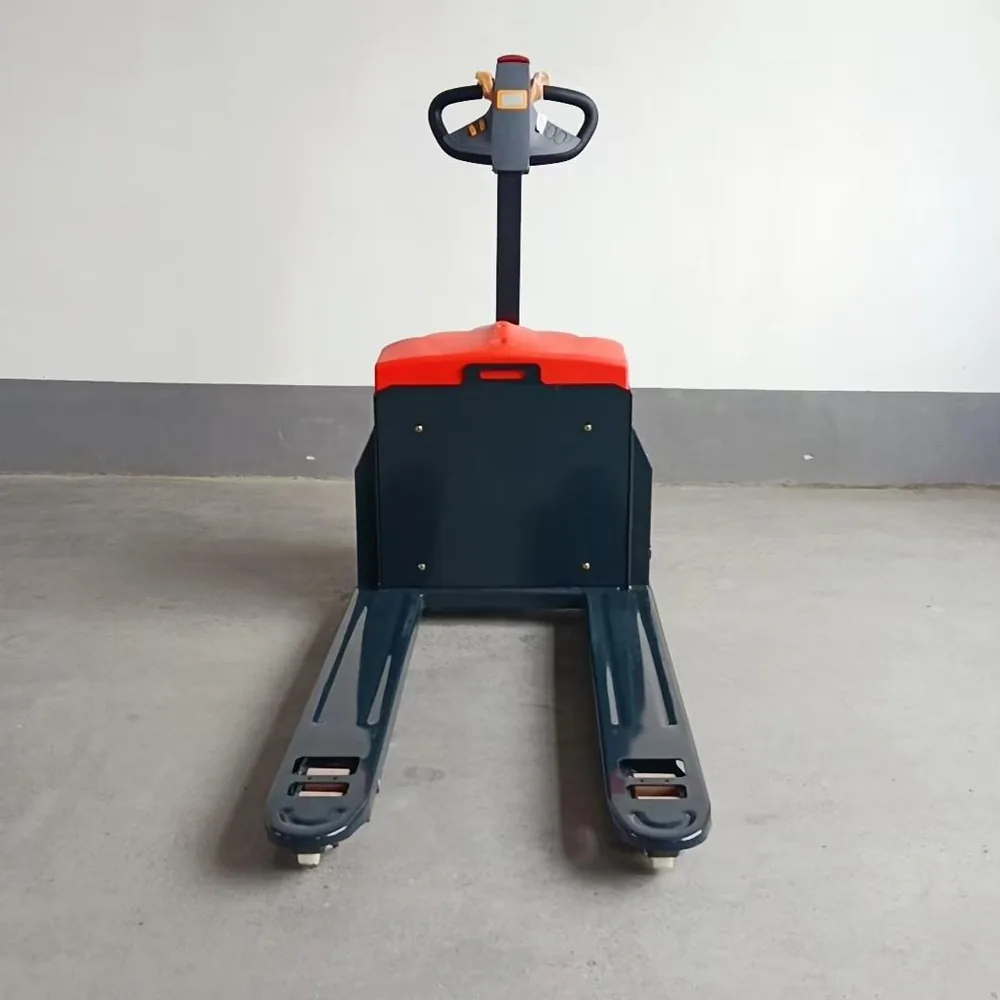

HE30 Heavy-Duty Electric Pallet Truck
Heavier pallet transfer in warehouses and loading areas

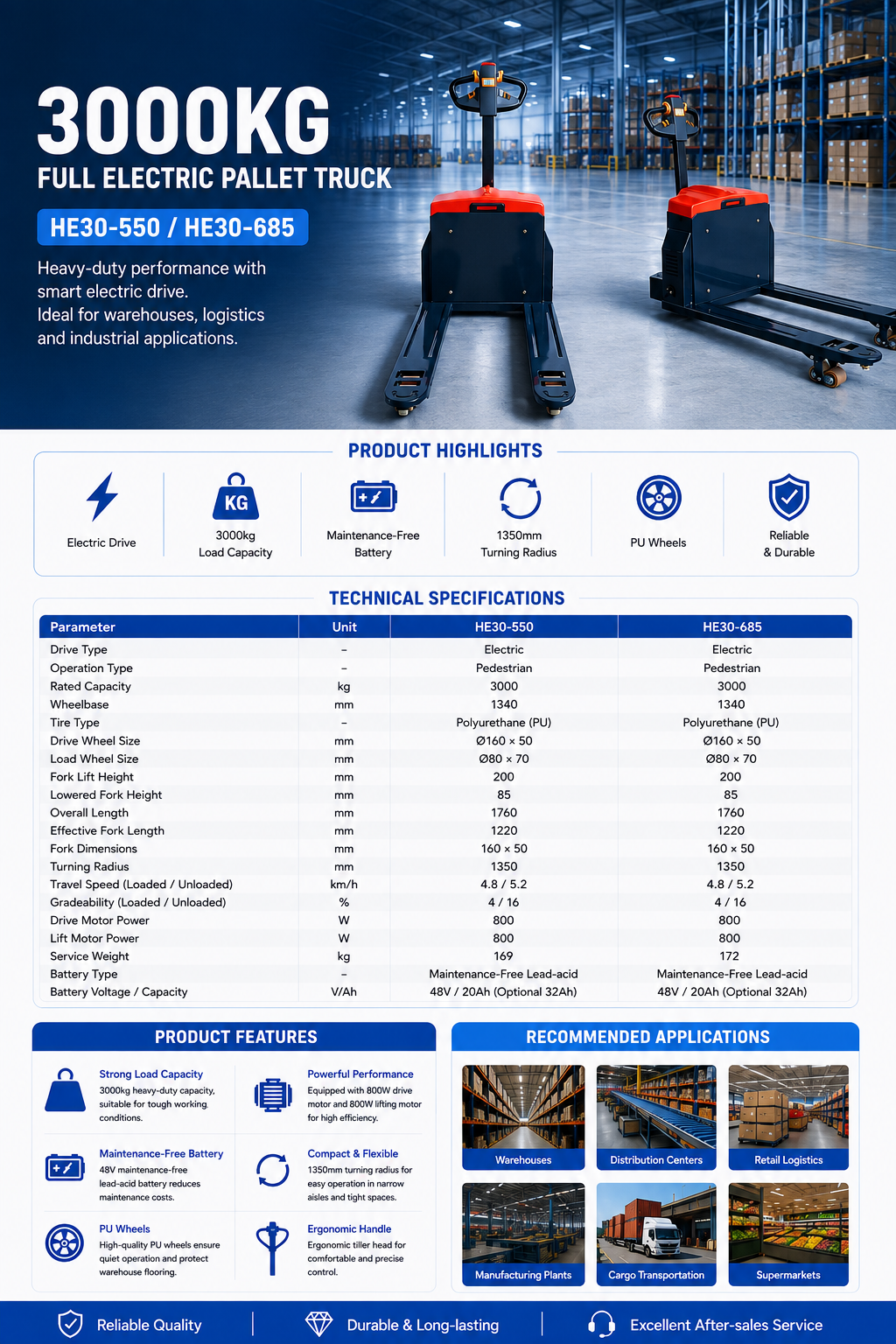

Technical Parameters
| Rated capacity | 3000 kg |
|---|---|
| Fork lift height | 200 mm |
| Lowered fork height | 85 mm |
| Overall length | 1760 mm |
| Turning radius | 1350 mm |
| Travel speed loaded/unloaded | 4.8 / 5.2 km/h |
| Drive motor | 800 W |
| Lift motor | 800 W |
| Battery | Maintenance-free lead-acid, 48V / 20Ah or 32Ah |
| Service weight | 169 / 172 kg |
| Pending fields | Packaging dimensions, container quantity, certificates and warranty policy to be confirmed |
Quick Inquiry
Tell Us What You Need
Share capacity, fork size, quantity and application. Email notification can be enabled after SMTP details are provided.
