CBD30-550 / CBD30-685

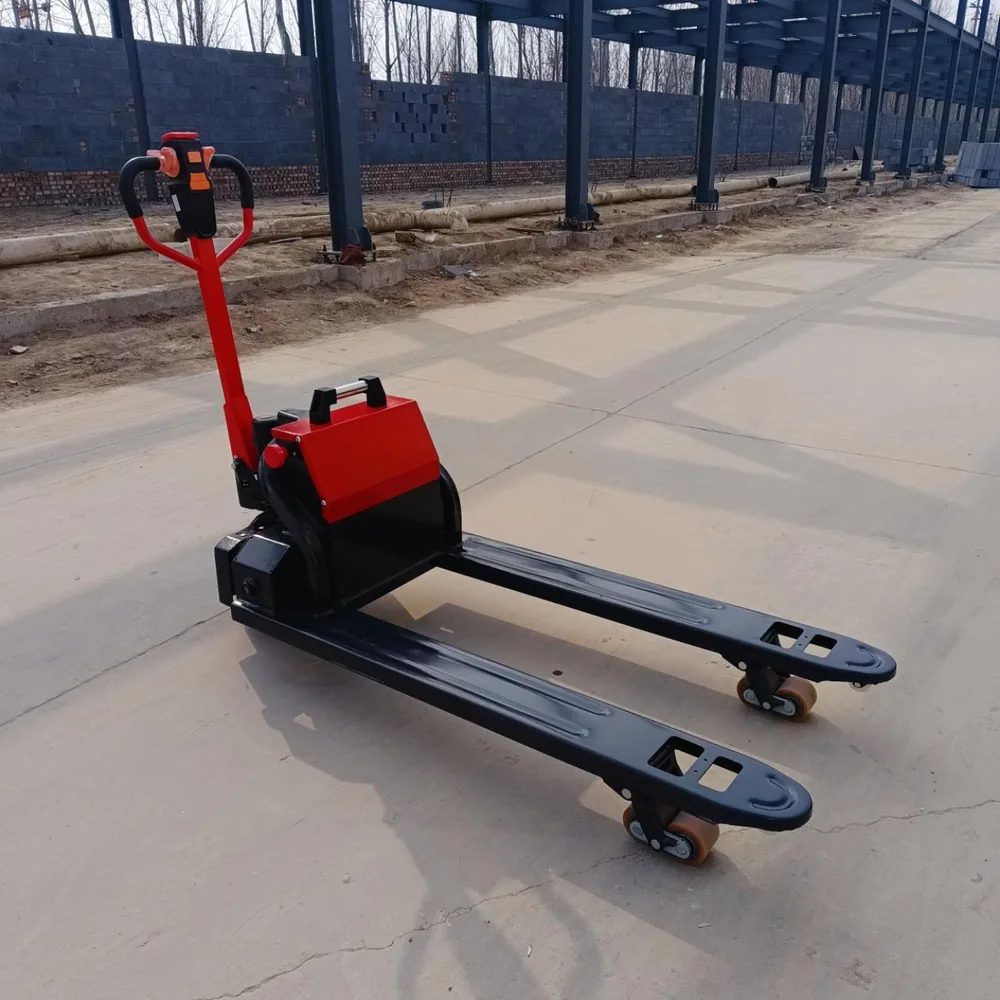

CBD30 Semi-Electric Pallet Truck
Cost-sensitive electric travel pallet handling
Technical Parameters
| Rated capacity | 3000 kg |
|---|---|
| Wheel type | Nylon |
| Fork lift height | 200 mm |
| Lowered fork height | 85 mm |
| Overall length | 1750 mm |
| Turning radius | 1350 mm |
| Drive motor | 800 W |
| Lift motor | 800 W |
| Battery | Maintenance-free lead-acid, 48V / 20Ah |
| Service weight | 142 / 146 kg |
| Pending fields | Packaging dimensions, container quantity, certificates and warranty policy to be confirmed |
