CBD30-550 / CBD30-685

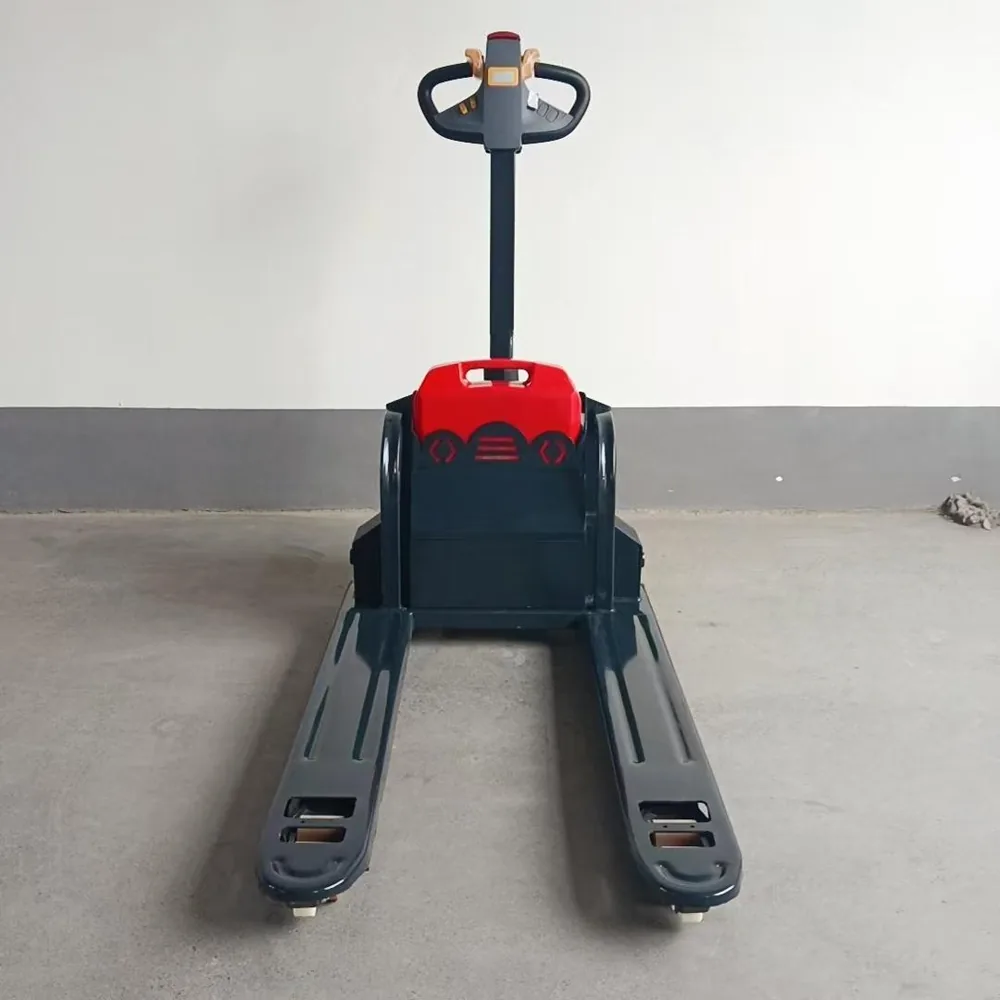

CBD30 Lithium Electric Pallet Truck
Frequent pallet transfer with lithium battery configuration

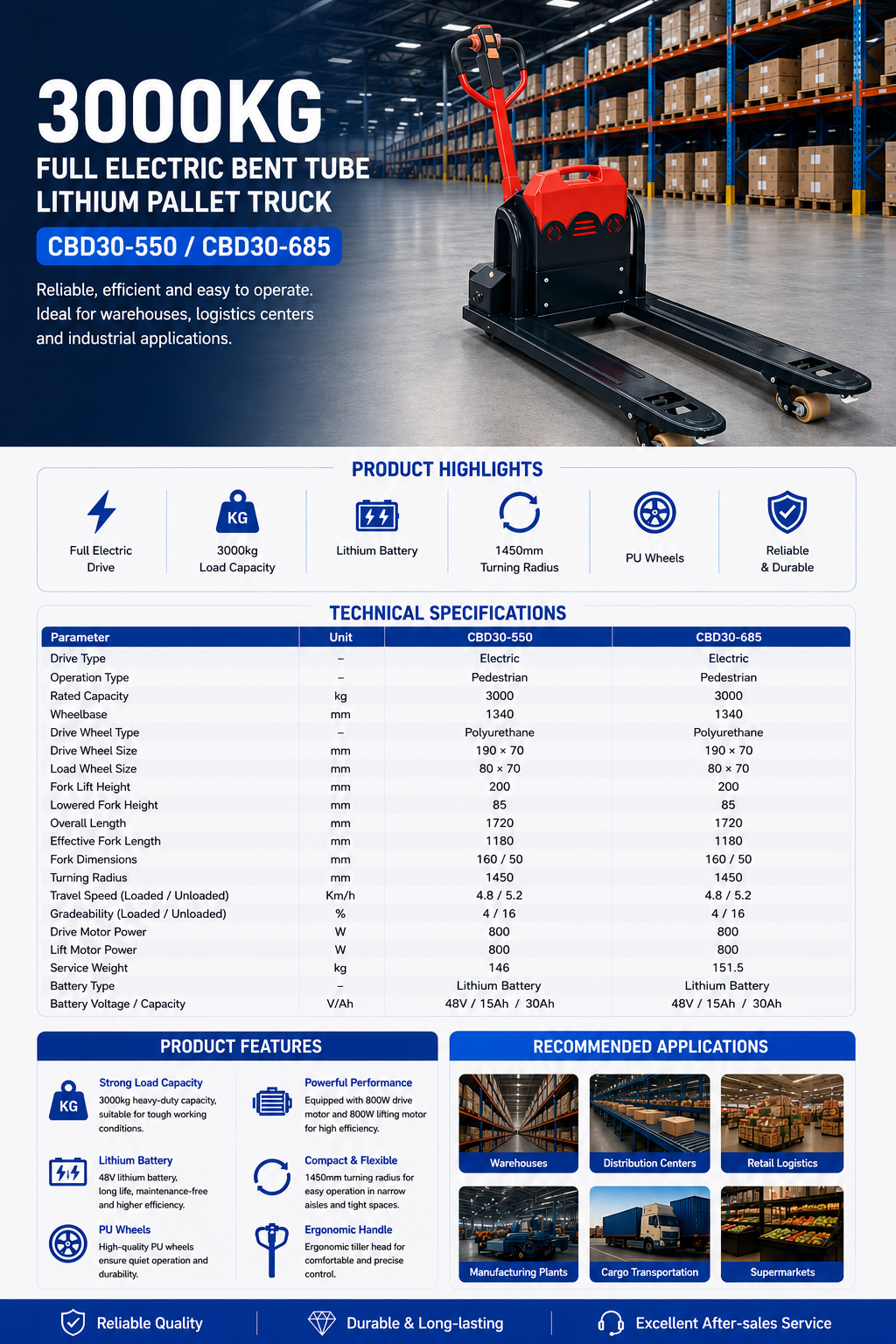

Technical Parameters
| Rated capacity | 3000 kg |
|---|---|
| Wheel type | Polyurethane |
| Drive wheel | 190*70 mm |
| Load roller | 80*70 mm |
| Fork lift height | 200 mm |
| Lowered fork height | 85 mm |
| Overall length | 1720 mm |
| Turning radius | 1450 mm |
| Drive motor | 800 W |
| Lift motor | 800 W |
| Battery | Lithium, 48V / 15Ah or 30Ah |
| Service weight | 146 / 151.5 kg |
| Pending fields | Packaging dimensions, container quantity, certificates and warranty policy to be confirmed |
